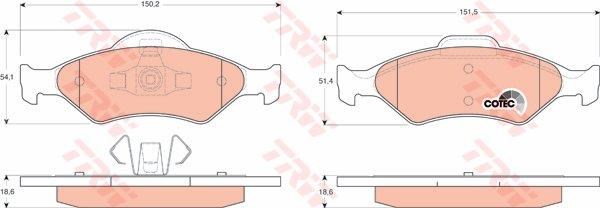

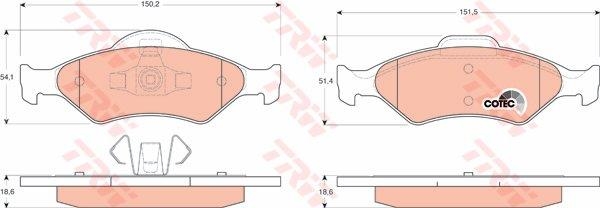

SPECIFICHE TECNICHE
Lato montaggio Assale anteriore
Limitazione costruttore ATE
Spessore mm 18,6
Marchio controllo E9 90R 01107/175
Lunghezza mm 151,5
Altezza mm 54,1
Contatto avvisatore usura Non predisposto per contatto segnalazione usura
CODICI DI INTERCAMBIO
A.B.S. 36709OE
A.B.S. 37196
A.B.S. 37196OE
ACDelco AC685381D
APEC braking PAD1125
ATE 13046039652
ATE 13046071202
ATE 13046071482
BENDIX 571996B
BENDIX 571996X
BOSCH 0986424644
BOSCH 0986424645
BOSCH 0986492020
BOSCH 0986495019
BOSCH 0986495247
BOSCH 0986TB2374
BOSCH F026000011
Brake ENGINEERING PA1268
BREMBO P24045
BREMBO P24054
DELPHI LP1139
DELPHI LP1470
DELPHI LP673
DITAS DFB3336
E.T.F. 120462
E.T.F. 120827
E.T.F. 120873
E.T.F. 121010
FEBI BILSTEIN 16400
FERODO FDB1276
FERODO FDB1393
FERODO FQT1276
FERODO FSL1276
FERODO FSL1393
FERODO TAR1276
FERODO TAR1393
FORD 1030601
FORD 1031781
FORD 1111857
FORD 1111858
FORD 1121667
FORD 1130715
FORD 1206062
FORD 1465126
FORD 91FX2K021AB
FORD YS612K021AA
FORD YS6J2K021AA
FORD YS6J2K021AB
fri.tech. 3240
FTE BL1255A2
FTE BL1776A1
GIRLING 6114182
HELLA 8DB355007391
HELLA 8DB355008891
HELLA 8DB355019291
HERZOG GERMANY 886709
HERZOG GERMANY 887196
ICER 181229
ICER 181344
JP GROUP DP708
JP GROUP DP709
JURID 571913J
JURID 571996D
JURID 571996J
KAWE 81430
LEMF RDER 2482603
LEMF RDER 26459
LPR 05P717
LPR 05P795
MAGNETI MARELLI 363702161056
MAGNETI MARELLI 363702161189
MAGNETI MARELLI 363702161214
MAPCO 6388
MAPCO 63881
MAPCO 6545
MAZDA 1E123323Z
METELLI 2203150
METZGER 033100
METZGER 033104
METZGER 076500
MEYLE 0252320018
MEYLE 0252320018PD
MEYLE 0252330018PD
MEYLE 0252330018W
MINTEX MDB1842
MINTEX MDB2059
MINTEX MDK0044
MINTEX MDK0147
MINTEX MDK0202
NECTO FD6756A
NECTO FD6756N
NECTO FD6891A
NECTO FD6891N
NK 222556
OPTIMAL 10207
PAGID T1192
PAGID T9069
PAGID T9069ECO
PEX 7049
PEX 7539
PEX 7539S
QH Benelux 7327
QUINTON HAZELL BP1260
QUINTON HAZELL BP982
RAMEDER T0600053
RAMEDER T0600098
RAMEDER T0610090
RAMEDER T0610142
REMSA 076500
REMSA 28510
REMSA 28520
REMSA 76500
ROULUNDS RUBBER 685381
sbs 222556
SCT Germany SP188
SPIDAN 32310
SPIDAN 32722
SWAG 50916400
TEXTAR 2320001
TEXTAR 2320018805
TEXTAR 2330002
TOPRAN 301891
TRISCAN 811016014
TRISCAN 811016950
TRUSTING 3240
TRW GDB1418
VALEO 597223
VALEO 597334
VALEO 598563
WOKING P665300
ZIMMERMANN 232001851
APPLICABILITÀ
FORD COURIER Furgonato (J5_, J3_) Furgonato 02/1996- 1.3 02/1996- (1299cm | 44kW | 60HP)
FORD COURIER Furgonato (J5_, J3_) Furgonato 02/1996- 1.4 i 04/1996-10/1999 (1388cm | 66kW | 90HP)
FORD COURIER Furgonato (J5_, J3_) Furgonato 02/1996- 1.8 D 02/1996- (1753cm | 44kW | 60HP)
FORD COURIER Furgonato (J5_, J3_) Furgonato 02/1996- 1.8 DI 09/2000- (1753cm | 55kW | 75HP)
FORD FIESTA Furgonato (JV_) Furgonato 05/1998- D 1.8 05/1998- (1753cm | 44kW | 60HP)
FORD FIESTA Furgonato (JV_) Furgonato 05/1998- TD 1.8 03/2000- (1753cm | 55kW | 75HP)
FORD FIESTA III (GFJ) 2 volumi /Coda spiovente 01/1989-01/1997 1.8 D 03/1989-12/1995 (1753cm | 44kW | 60HP)
FORD FIESTA IV (JA_, JB_) 2 volumi /Coda spiovente 08/1995-09/2002 1.0 i 09/1999-01/2002 (999cm | 48kW | 65HP)
FORD FIESTA IV (JA_, JB_) 2 volumi /Coda spiovente 08/1995-09/2002 1.25 i 16V 08/1995-01/2002 (1242cm | 55kW | 75HP)
FORD FIESTA IV (JA_, JB_) 2 volumi /Coda spiovente 08/1995-09/2002 1.3 i 08/1995-01/2002 (1299cm | 37kW | 50HP)
FORD FIESTA IV (JA_, JB_) 2 volumi /Coda spiovente 08/1995-09/2002 1.3 i 08/1995-01/2002 (1299cm | 44kW | 60HP)
FORD FIESTA IV (JA_, JB_) 2 volumi /Coda spiovente 08/1995-09/2002 1.4 i 16V 04/1996-01/2002 (1388cm | 66kW | 90HP)
FORD FIESTA IV (JA_, JB_) 2 volumi /Coda spiovente 08/1995-09/2002 1.8 D 08/1995-04/2000 (1753cm | 44kW | 60HP)
FORD FIESTA IV (JA_, JB_) 2 volumi /Coda spiovente 08/1995-09/2002 1.8 DI 04/2000-01/2002 (1753cm | 55kW | 75HP)
FORD KA (RB_) 2 volumi /Coda spiovente 09/1996-11/2008 1.0 i 09/1999-11/2008 (999cm | 48kW | 65HP)
FORD KA (RB_) 2 volumi /Coda spiovente 09/1996-11/2008 1.3 i 06/1998-11/2008 (1299cm | 36kW | 49HP)
FORD KA (RB_) 2 volumi /Coda spiovente 09/1996-11/2008 1.3 i 08/2002-11/2008 (1299cm | 51kW | 70HP)
FORD KA (RB_) 2 volumi /Coda spiovente 09/1996-11/2008 1.3 i 09/1996-10/2002 (1299cm | 37kW | 50HP)
FORD KA (RB_) 2 volumi /Coda spiovente 09/1996-11/2008 1.3 i 09/1996-11/2008 (1299cm | 44kW | 60HP)
MAZDA 121 III (JASM, JBSM) 2 volumi /Coda spiovente 03/1996-04/2003 1.25 03/1996-04/2003 (1242cm | 55kW | 75HP)
MAZDA 121 III (JASM, JBSM) 2 volumi /Coda spiovente 03/1996-04/2003 1.3 03/1996-04/2003 (1299cm | 37kW | 50HP)
MAZDA 121 III (JASM, JBSM) 2 volumi /Coda spiovente 03/1996-04/2003 1.3 03/1996-04/2003 (1299cm | 44kW | 60HP)
MAZDA 121 III (JASM, JBSM) 2 volumi /Coda spiovente 03/1996-04/2003 1.8 D 03/1996-04/2003 (1753cm | 44kW | 60HP)
