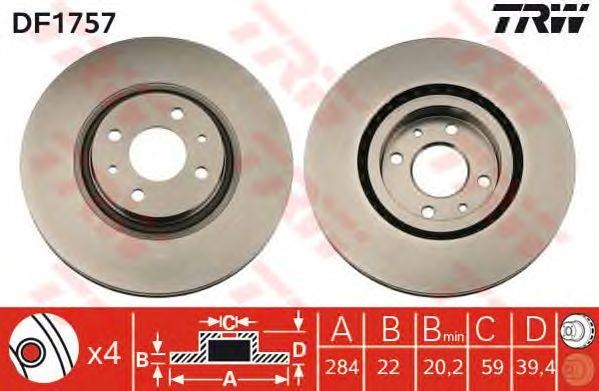

SPECIFICHE TECNICHE
Lato montaggio Assale anteriore
Diametro mm 284
Altezza mm 39,5
Tipo disco freno ventilato
Spessore disco freno mm 22
Dimensioni filettatura 13
Spessore min. mm 20,2
Lavorazione/Trattamento ad alto tenore di carbonio
N° fori 4
Diametro centraggio mm 59
Cerchio foro- mm 98
CODICI DI INTERCAMBIO
A.B.S. 16153
ABEX W0508
ACDelco AC2226D
ALFA ROMEO 0060812067
ALFA ROMEO 60811878
ALFA ROMEO 60811890
ALFA ROMEO 60812067
ALFA ROMEO 71738906
AP 24273E
AP X24273
APEC braking DSK671
ATE 24012201071
ATE 24032201071
ATE 422107
ATE 522107
BENDIX 345077
BENDIX 561508B
BENDIX 561508BC
BENDIX 561509BC
BOSCH 0986478786
BOSCH 0986479907
BRADI 1220624
Brake ENGINEERING DI955186
BREMBO 09505810
BREMBO 09505814
BREMBO 09505875
BREMBO 09962614
CAR 142412
CAR HPD412
DELPHI BG2617
DELPHI BG617
DELPHI BS3854
FAG BS3854
FEBI BILSTEIN 12133
FERODO DDF252
FERODO DDF2521
FERODO DRF252
FIAT 0000060811890
FIAT 0000060812067
FIAT 46403958
FIAT 46427947
FIAT 46427949
FIAT 71738906
FIAT 82462136
FIRST LINE FBD476
FTE BS3854
GIRLING 6017571
GRAF DF29298L
HELLA 8DD355102521
HELLA 8DD355102531
JURID 561508J
JURID 561508JC
JURID 561509J
JURID 561509JC
LANCIA 0000060811890
LANCIA 46427947
LANCIA 71738906
LANCIA 82462136
LEMF RDER 2004501
LPR L2081V
MAGNETI MARELLI 353612206240
MAGNETI MARELLI 431602040160
MAPCO 15040
METELLI 230298
METZGER 24273E
METZGER X24273
MEYLE 2155210010
MINTEX MDC808
NATIONAL NBD347
NK 202327
OBTEC A/S 161623V
PAGID 50914
PAGID 50914PRO
PEX 140247
PILENGA V036
QH Benelux 57446
QUINTON HAZELL BDC3854
QUINTON HAZELL BSF3854
REMSA 631510
ROADHOUSE 631510
ROULUNDS RUBBER D2226
SEBRO 3253
SWAG 70912133
TEXTAR 92055200
TEXTAR 92055203
TEXTAR 98200055201
TRISCAN 812015110
TRISCAN 812015110C
TRW DF1757
VALEO 186266
VALEO 186297
WOKING P631510
ZIMMERMANN 230236300
ZIMMERMANN 230236320
ZIMMERMANN 230236350
ZIMMERMANN 230236352
APPLICABILITÀ
ALFA ROMEO 145 (930) 2 volumi /Coda spiovente 07/1994-01/2001 1.8 i.e. 16V T.S. 12/1996-12/1998 (1747cm | 103kW | 140HP)
ALFA ROMEO 145 (930) 2 volumi /Coda spiovente 07/1994-01/2001 1.8 i.e. 16V 03/1998-01/2001 (1747cm | 106kW | 144HP)
ALFA ROMEO 145 (930) 2 volumi /Coda spiovente 07/1994-01/2001 2.0 16V Quadrifoglio 03/1998-01/2001 (1970cm | 114kW | 155HP)
ALFA ROMEO 145 (930) 2 volumi /Coda spiovente 07/1994-01/2001 2.0 16V T.S. 10/1995-01/2001 (1970cm | 110kW | 150HP)
ALFA ROMEO 146 (930) 2 volumi /Coda spiovente 12/1994-01/2001 1.8 i.e. 16V T.S. 03/1998-01/2001 (1747cm | 106kW | 144HP)
ALFA ROMEO 146 (930) 2 volumi /Coda spiovente 12/1994-01/2001 1.8 i.e. 16V T.S. 11/1996-01/2001 (1747cm | 103kW | 140HP)
ALFA ROMEO 146 (930) 2 volumi /Coda spiovente 12/1994-01/2001 2.0 16V Quadrifoglio 03/1998-01/2001 (1970cm | 114kW | 155HP)
ALFA ROMEO 146 (930) 2 volumi /Coda spiovente 12/1994-01/2001 2.0 16V T.S. 10/1995-01/2001 (1970cm | 110kW | 150HP)
ALFA ROMEO 155 (167) Tre volumi 01/1992-12/1997 2.0 16V Turbo Q4 (167.A2B, 167.A2C, 167.A2E) 01/1992-12/1997 (1995cm | 137kW | 186HP)
ALFA ROMEO 155 (167) Tre volumi 01/1992-12/1997 2.0 16V Turbo Q4 01/1992-12/1997 (1995cm | 140kW | 190HP)
ALFA ROMEO 155 (167) Tre volumi 01/1992-12/1997 2.0 T.S. 16V (167.A2G) 03/1995-12/1997 (1970cm | 110kW | 150HP)
ALFA ROMEO 155 (167) Tre volumi 01/1992-12/1997 2.5 V6 (167.A1) 02/1992-09/1996 (2492cm | 121kW | 165HP)
FIAT COUPE (FA/175) Coupé 11/1993-08/2000 1.8 16V 03/1996-08/2000 (1747cm | 96kW | 131HP)
FIAT COUPE (FA/175) Coupé 11/1993-08/2000 2.0 16V 11/1993-08/1996 (1995cm | 102kW | 139HP)
FIAT COUPE (FA/175) Coupé 11/1993-08/2000 2.0 20V 04/1998-08/2000 (1998cm | 113kW | 154HP)
FIAT COUPE (FA/175) Coupé 11/1993-08/2000 2.0 20V 08/1996-04/1998 (1998cm | 108kW | 147HP)
FIAT MULTIPLA (186) MPV / Space wagon 04/1999-06/2010 1.6 100 16V (186AXA1A) 04/1999-06/2010 (1581cm | 76kW | 103HP)
FIAT MULTIPLA (186) MPV / Space wagon 04/1999-06/2010 1.6 16V (186AGB1A) 04/2002-06/2010 (1596cm | 70kW | 95HP)
FIAT MULTIPLA (186) MPV / Space wagon 04/1999-06/2010 1.6 16V Bipower (186AMB1A) 04/1999-06/2010 (1581cm | 76kW | 103HP)
FIAT MULTIPLA (186) MPV / Space wagon 04/1999-06/2010 1.6 16V Bipower (186AXC1A) 10/2001-06/2010 (1596cm | 76kW | 103HP)
FIAT MULTIPLA (186) MPV / Space wagon 04/1999-06/2010 1.6 16V Blupower (186AMA1A) 04/1999-06/2010 (1581cm | 70kW | 95HP)
FIAT MULTIPLA (186) MPV / Space wagon 04/1999-06/2010 1.6 09/2000-06/2010 (1596cm | 76kW | 103HP)
FIAT MULTIPLA (186) MPV / Space wagon 04/1999-06/2010 1.9 JTD (186AXE1A) 04/2002-06/2010 (1910cm | 88kW | 120HP)
FIAT MULTIPLA (186) MPV / Space wagon 04/1999-06/2010 1.9 JTD 105 (186AXB1A) 04/1999-06/2010 (1910cm | 77kW | 105HP)
FIAT MULTIPLA (186) MPV / Space wagon 04/1999-06/2010 1.9 JTD 110 03/2001-07/2002 (1910cm | 81kW | 110HP)
FIAT MULTIPLA (186) MPV / Space wagon 04/1999-06/2010 1.9 JTD 115 07/2002-06/2010 (1910cm | 85kW | 115HP)
FIAT PUNTO (188) 2 volumi /Coda spiovente 09/1999- 1.8 130 HGT (188.738, .718) 09/1999- (1747cm | 96kW | 130HP)
FIAT PUNTO (188) 2 volumi /Coda spiovente 09/1999- 1.9 JTD 06/2003- (1910cm | 74kW | 101HP)
FIAT TIPO (160) 2 volumi /Coda spiovente 07/1987-10/1995 2.0 16V (160.AV) 07/1991-04/1995 (1995cm | 107kW | 146HP)
FIAT TIPO (160) 2 volumi /Coda spiovente 07/1987-10/1995 2.0 i.e. 16V Sport (160.EF) 03/1993-04/1995 (1995cm | 102kW | 139HP)
LANCIA DEDRA (835) Tre volumi 01/1989-07/1999 2.0 HF Integrale (835AP) 11/1990-07/1994 (1995cm | 124kW | 169HP)
LANCIA DEDRA (835) Tre volumi 01/1989-07/1999 2.0 i.e. Turbo (835AR) 04/1991-07/1999 (1995cm | 119kW | 162HP)
LANCIA DEDRA (835) Tre volumi 01/1989-07/1999 2.0 i.e. Turbo Integrale (835AO) 05/1990-07/1994 (1995cm | 121kW | 165HP)
LANCIA DEDRA (835) Tre volumi 01/1989-07/1999 2.0 Turbo (835AQ) 11/1990-06/1994 (1995cm | 130kW | 177HP)
LANCIA DEDRA SW (835) Station wagon 07/1994-07/1999 2.0 Integrale (835ED) 07/1994-07/1999 (1995cm | 102kW | 139HP)
LANCIA DELTA II (836) 2 volumi /Coda spiovente 06/1993-09/1999 1.8 i.e. 16V GT (836AR) 03/1996-08/1999 (1747cm | 96kW | 131HP)
LANCIA DELTA II (836) 2 volumi /Coda spiovente 06/1993-09/1999 2.0 16V (836AA, 836CA) 06/1993-08/1999 (1995cm | 102kW | 139HP)
Non disp.
