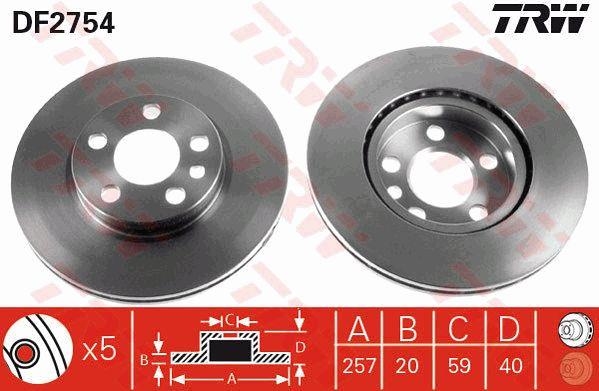

COPPIA DISHI FRENO FIAT SCUDO-CITROEN EVASION

SPECIFICHE TECNICHE

Lato montaggio Assale anteriore

Diametro mm 257

Altezza mm 40,5

Tipo disco freno ventilato

Spessore disco freno mm 20

Dimensioni filettatura 16,6

Spessore min. mm 18,2

N° fori 5

Diametro centraggio mm 59

Cerchio foro- mm 98

CODICI DI INTERCAMBIO

A.B.S. 16325

APEC braking DSK665

ATE 24012001551

BENDIX 562033B

BENDIX 562033BC

BOSCH 0986478896

BOSCH 986478812

BRADI 1151926

Brake ENGINEERING DI955595

BREMBO 09587030

BREMBO 09587034

BREMBO 09963134

CAR 142194

CAR HPD194

CITRO N 4246H9

CITRO N 4249C7

CITRO N 4249L4

DELPHI BG3024

DELPHI BG3222

DITAS DFD1041

FEBI BILSTEIN 12036

FERODO DDF842

FERODO DDF8421

FIAT 0001312833080

FIAT 1316323080

FIAT 71738144

FIRST LINE FBD1023

FTE BS4620

GIRLING 6027541

HELLA 8DD355105621

JURID 562033J

JURID 562033JC

LEMF RDER 2283401

MAGNETI MARELLI 351002120600

MAGNETI MARELLI 353611519260

MAGNETI MARELLI 431602040030

MAPCO 15308

METELLI 230402

METZGER 24593E

MEYLE 11155210015

MINTEX MDC992

MINTEX MDK0126

NK 201923

NK 311923

OBTEC A/S 272750V

PAGID 50936

PAGID 50936PRO

PEUGEOT 4246H8

PEX 140163

QH Benelux 57665

QUINTON HAZELL BDC4620

QUINTON HAZELL BSF4620

REMSA 644211

ROADHOUSE 644211

SEBRO 3258

SWAG 70912036

TEXTAR 92088000

TEXTAR 98200088001

TRISCAN 812010144

TRW DF2754

VALEO 186589

ZIMMERMANN 230236400

ZIMMERMANN 230236420

ZIMMERMANN 230236450

APPLICABILITÀ

CITRO N EVASION (22, U6) MPV / Space wagon 06/1994-07/2002 1.8 05/1997-07/2002 (1761cm | 73kW | 99HP)

CITRO N JUMPY (U6U) MPV / Space wagon 06/1994- 1.6 10/1995- (1581cm | 58kW | 79HP)

CITRO N JUMPY (U6U) MPV / Space wagon 06/1994- 1.9 D 70 04/1998- (1868cm | 51kW | 69HP)

CITRO N JUMPY (U6U) MPV / Space wagon 06/1994- 1.9 D 10/1995-04/1998 (1905cm | 51kW | 69HP)

CITRO N JUMPY (U6U) MPV / Space wagon 06/1994- 1.9 TD 04/1996- (1905cm | 68kW | 92HP)

CITRO N JUMPY (U6U) MPV / Space wagon 06/1994- 1.9 TD 10/1995- (1905cm | 66kW | 90HP)

CITRO N JUMPY (U6U) MPV / Space wagon 06/1994- 2.0 HDi 110 03/2000- (1997cm | 80kW | 109HP)

CITRO N JUMPY (U6U) MPV / Space wagon 06/1994- 2.0 HDi 110 03/2000- (1997cm | 80kW | 109HP)

CITRO N JUMPY (U6U) MPV / Space wagon 06/1994- 2.0 HDi 95 10/1999- (1997cm | 69kW | 94HP)

CITRO N JUMPY (U6U) MPV / Space wagon 06/1994- 2.0 i 16V 03/2000- (1997cm | 102kW | 138HP)

CITRO N JUMPY (U6U) MPV / Space wagon 06/1994- 2.0 04/2000-12/2006 (1997cm | 100kW | 136HP)

CITRO N JUMPY Furgonato (BS_, BT_, BY_, BZ_) Furgonato 06/1994- 1.6 i 10/1995- (1581cm | 58kW | 79HP)

CITRO N JUMPY Furgonato (BS_, BT_, BY_, BZ_) Furgonato 06/1994- 1.9 D 70 04/1998- (1868cm | 51kW | 69HP)

CITRO N JUMPY Furgonato (BS_, BT_, BY_, BZ_) Furgonato 06/1994- 1.9 TD 10/1995- (1905cm | 66kW | 90HP)

CITRO N JUMPY Furgonato (BS_, BT_, BY_, BZ_) Furgonato 06/1994- 2.0 HDi 110 01/2002- (1997cm | 80kW | 109HP)

CITRO N JUMPY Furgonato (BS_, BT_, BY_, BZ_) Furgonato 06/1994- 2.0 HDi 95 10/1999- (1997cm | 69kW | 94HP)

CITRO N JUMPY Furgonato (BS_, BT_, BY_, BZ_) Furgonato 06/1994- 2.0 i 16V 03/2000- (1997cm | 102kW | 138HP)

FIAT SCUDO Combinato (220P) Station wagon 02/1996-12/2006 1.6 02/1996-12/2006 (1581cm | 58kW | 79HP)

FIAT SCUDO Combinato (220P) Station wagon 02/1996-12/2006 1.9 D 02/1996-04/1998 (1905cm | 51kW | 69HP)

FIAT SCUDO Combinato (220P) Station wagon 02/1996-12/2006 1.9 D 04/1998-12/2006 (1868cm | 51kW | 69HP)

FIAT SCUDO Combinato (220P) Station wagon 02/1996-12/2006 1.9 TD Eco 02/1996-12/2006 (1905cm | 66kW | 90HP)

FIAT SCUDO Combinato (220P) Station wagon 02/1996-12/2006 1.9 TD 02/1996-12/2006 (1905cm | 68kW | 92HP)

FIAT SCUDO Combinato (220P) Station wagon 02/1996-12/2006 2.0 16V 06/2000-12/2006 (1997cm | 100kW | 136HP)

FIAT SCUDO Combinato (220P) Station wagon 02/1996-12/2006 2.0 JTD 12/1999-12/2006 (1997cm | 80kW | 109HP)

FIAT SCUDO Furgonato (220L) Furgonato 02/1996-12/2006 1.6 02/1996-12/2006 (1581cm | 58kW | 79HP)

FIAT SCUDO Furgonato (220L) Furgonato 02/1996-12/2006 1.9 D 02/1996-12/2006 (1905cm | 51kW | 69HP)

FIAT SCUDO Furgonato (220L) Furgonato 02/1996-12/2006 1.9 D 04/1998-12/2006 (1868cm | 51kW | 69HP)

FIAT SCUDO Furgonato (220L) Furgonato 02/1996-12/2006 1.9 TD 02/1996-12/2006 (1905cm | 66kW | 90HP)

FIAT SCUDO Furgonato (220L) Furgonato 02/1996-12/2006 1.9 TD 02/1998-12/2006 (1905cm | 68kW | 92HP)

FIAT SCUDO Furgonato (220L) Furgonato 02/1996-12/2006 2.0 JTD 16V 05/1999-12/2006 (1997cm | 80kW | 109HP)

FIAT SCUDO Furgonato (220L) Furgonato 02/1996-12/2006 2.0 JTD 12/1999-12/2006 (1997cm | 69kW | 94HP)

FIAT SCUDO Furgonato (220L) Furgonato 02/1996-12/2006 2.0 JTD 12/2002-12/2006 (1997cm | 80kW | 109HP)

FIAT SCUDO Furgonato (220L) Furgonato 02/1996-12/2006 2.0 05/2000-12/2006 (1997cm | 100kW | 136HP)

FIAT ULYSSE (220) MPV / Space wagon 06/1994-08/2002 1.8 (220.BB5) 05/1997-08/2002 (1761cm | 73kW | 99HP)

PEUGEOT 806 (221) MPV / Space wagon 06/1994-08/2002 1.8 07/1995-08/2002 (1761cm | 73kW | 99HP)

PEUGEOT EXPERT (224) MPV / Space wagon 12/1995- 1.6 02/1996- (1581cm | 58kW | 79HP)

PEUGEOT EXPERT (224) MPV / Space wagon 12/1995- 1.8 10/1996-09/2000 (1761cm | 74kW | 101HP)

PEUGEOT EXPERT (224) MPV / Space wagon 12/1995- 1.9 D 02/1996- (1905cm | 51kW | 70HP)

PEUGEOT EXPERT (224) MPV / Space wagon 12/1995- 1.9 TD 02/1996- (1905cm | 66kW | 90HP)

PEUGEOT EXPERT (224) MPV / Space wagon 12/1995- 1.9 TD 02/1996- (1905cm | 68kW | 92HP)

PEUGEOT EXPERT (224) MPV / Space wagon 12/1995- 2.0 HDI 16V 07/2000- (1997cm | 80kW | 109HP)

PEUGEOT EXPERT (224) MPV / Space wagon 12/1995- 2.0 HDI 07/2000- (1997cm | 80kW | 109HP)

PEUGEOT EXPERT (224) MPV / Space wagon 12/1995- 2.0 HDi 10/2000-11/2003 (1997cm | 69kW | 94HP)

PEUGEOT EXPERT (224) MPV / Space wagon 12/1995- 2.0 07/2000- (1997cm | 100kW | 136HP)

PEUGEOT EXPERT Furgonato (222) Furgonato 07/1995- 1.6 02/1996- (1581cm | 58kW | 79HP)

PEUGEOT EXPERT Furgonato (222) Furgonato 07/1995- 1.8 10/1996-09/2000 (1761cm | 74kW | 101HP)

PEUGEOT EXPERT Furgonato (222) Furgonato 07/1995- 1.9 D 70 12/1998- (1868cm | 51kW | 69HP)

PEUGEOT EXPERT Furgonato (222) Furgonato 07/1995- 1.9 D 02/1996- (1905cm | 51kW | 70HP)

PEUGEOT EXPERT Furgonato (222) Furgonato 07/1995- 1.9 TD 02/1996- (1905cm | 66kW | 90HP)

PEUGEOT EXPERT Furgonato (222) Furgonato 07/1995- 1.9 TD 02/1996- (1905cm | 68kW | 92HP)

PEUGEOT EXPERT Furgonato (222) Furgonato 07/1995- 2.0 HDI 07/2000- (1997cm | 69kW | 94HP)

PEUGEOT EXPERT Furgonato (222) Furgonato 07/1995- 2.0 HDI 07/2000- (1997cm | 80kW | 109HP)

PEUGEOT EXPERT Furgonato (222) Furgonato 07/1995- 2.0 HDI 07/2000- (1997cm | 80kW | 109HP)

PEUGEOT EXPERT Furgonato (222) Furgonato 07/1995- 2.0 09/2002- (1997cm | 100kW | 136HP)

PEUGEOT EXPERT Pianale piatto/Telaio (223) Pianale piatto/Telaio 12/1995- 1.6 02/1996- (1581cm | 58kW | 79HP)

PEUGEOT EXPERT Pianale piatto/Telaio (223) Pianale piatto/Telaio 12/1995- 1.9 D 02/1996- (1905cm | 51kW | 70HP)

PEUGEOT EXPERT Pianale piatto/Telaio (223) Pianale piatto/Telaio 12/1995- 1.9 TD 02/1996- (1905cm | 66kW | 90HP)

PEUGEOT EXPERT Pianale piatto/Telaio (223) Pianale piatto/Telaio 12/1995- 1.9 TD 02/1996- (1905cm | 68kW | 92HP)
